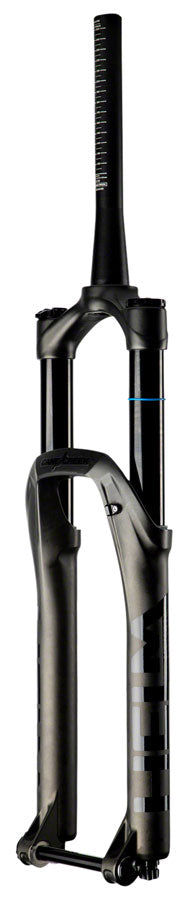

Cane Creek Helm MKII Air 27.5 Suspension Fork - 27.5" 160 mm 15 x 110 mm 44 mm Offset Gloss BLK


Sign In and Save Sitewide

Join our rewards program today and enjoy instant discounts on nearly everything sitewide. Discounts vary from 5% to 20%, with most discounts commonly at 10%. As a member, you'll also get additional perks such as free shipping and 90-day returns.

All you need to do is sign up and opt in for emails. You will automatically be opted in for emails when you sign up. If you later opt out of email marketing, you will no longer receive discounts.

Need a price match?

If you've found a better price elsewhere, please reach out to us to request a price match. We will do our best to match the price and in most cases we will be able to. However, given the widespread discounting in the industry, we can't guarantee price matching on every product.


In stock


Cane Creek Helm MKII Air 27.5 Suspension Fork - 27.5" 160 mm 15 x 110 mm 44 mm Offset Gloss Black. The Cane Creek Helm MKII Air Suspension Fork features an upgraded damper design for increased support and control and a redesigned air spring that allows for increased air volume for better traction and suppleness.
  • Compression and midvalve circuit offer increased support and control
  • SKF oil seal head cartridge and wiper seals are low friction
  • The redesigned air spring offers increased air volume for better traction and suppleness
  • The threadless air seal head allows for easier travel change
  • Damping features include: high speed compression low speed compression and low speed rebound
  • Adjustment options include: high speed compression (10 positions) low speed compression (17 positions) Low speed rebound (10 positions) independent positive air spring independent negative air spring and an indexed travel system (8 positions)
  • Double-Air spring system: high volume positive and negative air springs
  • "D-Loc" 15mm bolt-on thru axle
    Steerer Type Tapered
    Brake Type Post Mount 180
    Negative Spring Air
    Travel (mm) 160
    Offset 44
    Axle to Crown Length 553
    Front Axle 15mm Thru x 110mm
    Maximum Tire Width 75
    S.H.I.S. Stem Clamp Diameter 28.6
    Color Gloss Black
    Crown Race 40
    Weight 2050
    Wheel Size 27.5"
    External Adjustments High Speed Compression Damping
    External Adjustments Low Speed Compression Damping
    External Adjustments Rebound Damping
    Defined Color Black
    Positive Spring Air
    Stanchion Diameter 35
    Steerer Tube Length (mm) 265
