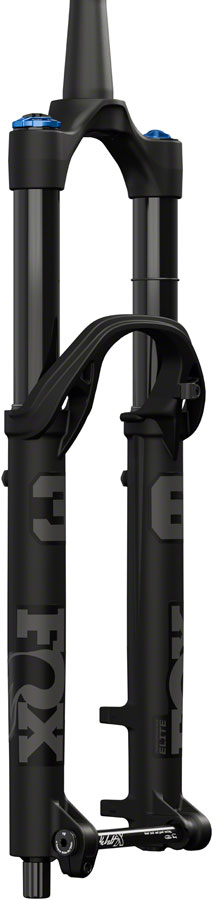

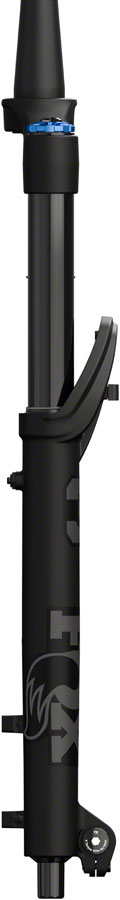

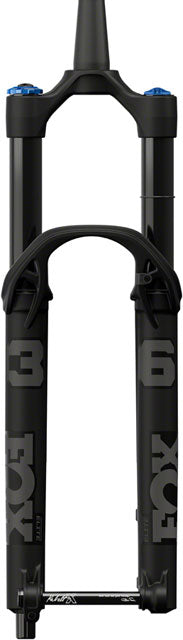

FOX 36 Performance Elite Suspension Fork - 29" 160 mm 15 x 110 mm Kabolt-X 44mm Offset GRIP X Damper 58HT Matte BLK
Regular price
$1,099.00
In stock
SKU: FK2783 || UPC: 821973504193
Description
Packed with features to dominate the descents, the 36 Performance Elite answers the call from aggressive all-mountain riders. Trail and all-mountain riders no longer need to choose between a descent-focused damper or a lightweight endurance damper. The GRIP X damper exudes exemplary descent performance, refined for less weight, easier set up and an easy access firm mode for pedaling efficiency.

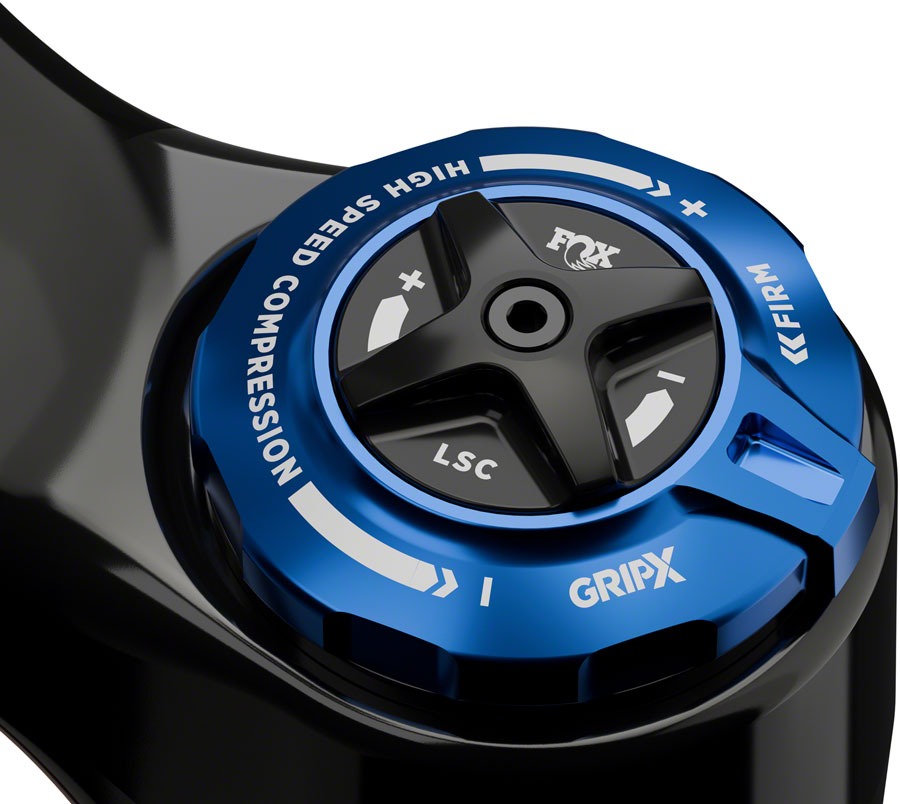

- GRIP X damper exudes exemplary descent performance, refined for less weight, easier set up and an easy access firm mode for pedaling efficiency
- Generative design-assisted lower leg arch shape increases torsional stiffness by 20%, while reducing overall material
- Additional 30mm bushing overlap than the prior model 36, reduces chassis friction, increasing stiffness and boosting performance
- New compliant FLOAT EVOL air spring design allows for a slight misalignment under load, reducing chassis friction noticeably
- Lower leg bypass channels were relocated 90° inboard to a lower stress area, reducing dynamic friction under bending forces
- Double-butted stanchion (on damper side) shaves weight, helping us achieve goal of zero weight increase

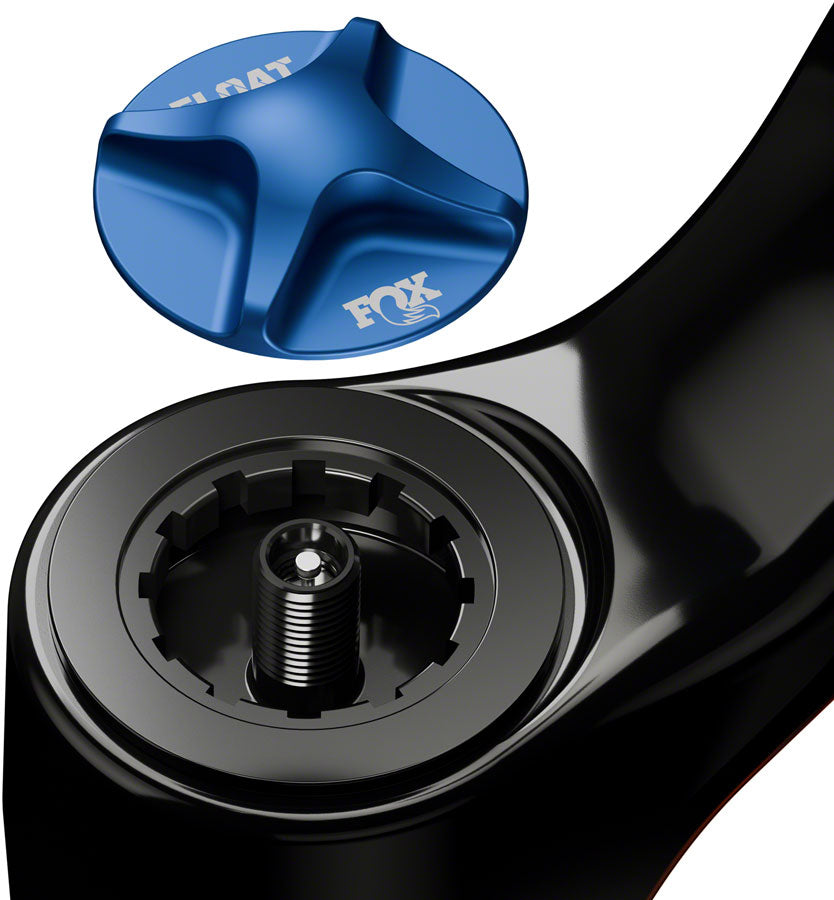

- New air spring top cap for easier air volume adjustments, removable with cassette tool (Sold separately)
- Redesigned bleeders are sleeker and easier to operate
- Kabolt X axle shaves grams while increasing torsional stiffness via a sleeveless, single-sided pinch bolt design
- Black anodized upper tubes for added durability
- Positive Spring: Air
- Wheel Size: 29"
- Brake Type: Post Mount 200
- External Adjustments: High Speed Compression Damping , Low Speed Compression Damping , Rebound Damping
- Crown Race: 40
- Negative Spring: Air
- Stanchion Diameter: 36
- Front Axle: 15mm Thru x 110mm
- Steerer Type: Tapered
- Offset: 44
- Maximum Tire Width: 66
- Steerer Tube Length (mm): 264
- keyword search: FOX Model Year 26 , FOX MY26
- Color: Matte Black
- S.H.I.S. Stem Clamp Diameter: 28.6
- Travel (mm): 160
- Axle to Crown Length: 576
- Lockout Switch: Crown
- Defined Color: Black
